SS Clamp Type Coupling
Type:SS Clamp Type Coupling (HJCS series);
Bore:3-40mm;
Diamenter:14-65mm;
Material: stainless steel

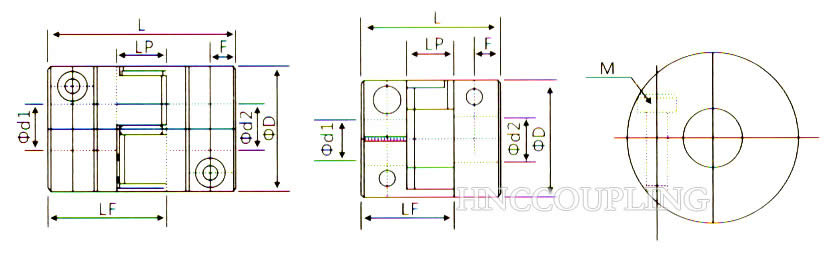

| Type | d1 d2
(mm) |
D
(mm) |
L
(mm) |
LF
(mm) |
LP
(mm) |
F
(mm) |
M | Nominal Torque
(N.M) |
Max Speed
(RPM) |
| HJCS-14X22 | 3~7 | 14 | 22 | 14.3 | 6.6 | 5.0 | M2.5 | 5 | 10000 |
| HJCS-20X25 | 3~10 | 20 | 25 | 16.7 | 8.6 | 5.9 | M3 | 7.5 | 10000 |
| HJCS-20X30 | 3~10 | 20 | 30 | 19.25 | 8.6 | 5.9 | M3 | 7.5 | 10000 |
| HJCS-25X30 | 4~12 | 25 | 30 | 20.82 | 11.6 | 7.5 | M4 | 15 | 10000 |
| HJCS-25X34 | 4~12 | 25 | 34 | 22.82 | 11.6 | 8.5 | M4 | 15 | 10000 |
| HJCS-30X35 | 5~16 | 30 | 35 | 23 | 11.5 | 10 | M4 | 18 | 10000 |
| HJCS-30X40 | 5~16 | 30 | 40 | 25.60 | 11.5 | 10 | M4 | 18 | 10000 |
| HJCS-40X50 | 6~24 | 40 | 50 | 32.1 | 14.5 | 14 | M5 | 25 | 8000 |
| HJCS-40X55 | 6~24 | 40 | 55 | 34.5 | 14.5 | 14 | M5 | 25 | 8000 |
| HJCS-40X66 | 6~24 | 40 | 66 | 40 | 14.5 | 14 | M5 | 25 | 7000 |
| HJCS-55X78 | 12~32 | 55 | 78 | 46.4 | 16.1 | 19 | M6 | 65 | 6000 |
| HJCS-65X90 | 14~40 | 65 | 90 | 53.5 | 17.3 | 22.5 | M8 | 160 | 5000 |
