ML Flexible Jaw Coupling

ML Coupling ML Flexible Jaw Coupling

ML Flexible Jaw Coupling Model: LM(ML)、MLZ、MLS
Material: steel;
Hole diameter:12~160mm;
Outside diameter:50~400mm;
Working Temperature:-35~+80℃;
GB/T5272-2002 replace GB5272-85
Manufacturer: CHINA
Use: water pump, fans, gearbox, motor.

ML Flexible Jaw Coupling is a type of general purpose power transmission coupling that also can be used in motion control(servo)applications.It is designed to transmit torque(by connecting two shafts)while damping system vibrations and accommodating misalignment,which protects other components from damage.Jaw couplings are composed of three parts:two metallic hubs and an elastomer insert called an element,but commonly referred to as a”spider”.The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider.Jaw coupling torque is transmitted through the elastomer lobes in compression.

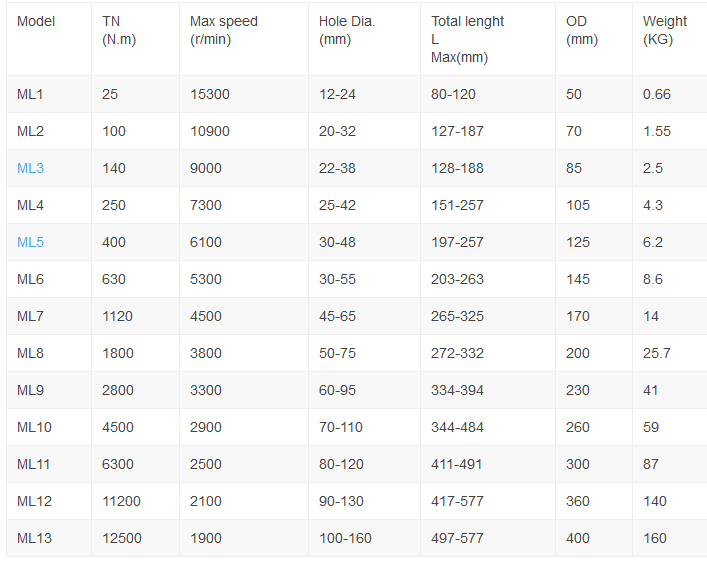

ML Flexible Jaw Coupling 1
